2 Button Video Intercom with Keypad & Smart Phone Connection

2 Button Video Intercom with Keypad & Smart Phone Connection

(Code: XA Wi-Fi KP VID 2B)

2 Button Video Intercom with Mobile Phone Connection

£ 600.00
  • Free technical support & after sales care at 01992 465999 or sales@gatesgates.co.uk
  • Secure payments with Credit and Debit cards, PayPal, Bank transfer
  • Visit our Testimonials page to read the what our clients think of us

Information about the 2 Button Video Intercom with Mobile Phone Connection

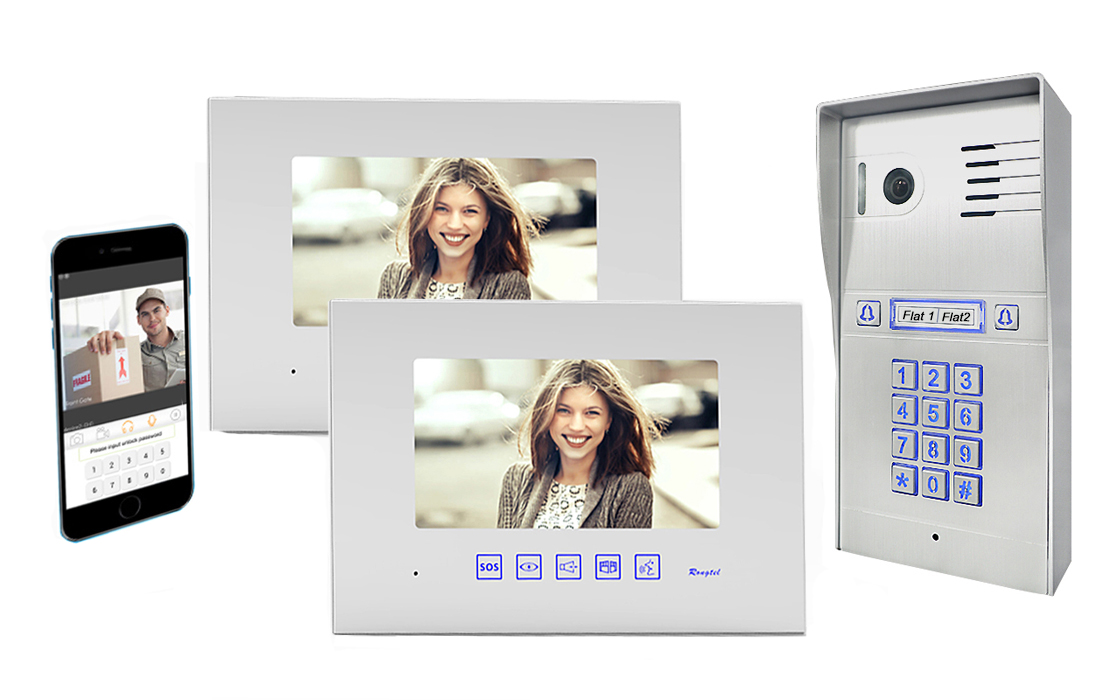

Our 2 Button Video intercom with Wi-Fi connection. for 2 independent properties such as houses, flats, shops or offices. Each button will call one of the monitors and smart phones or tables linked to that button. the system comes with Two stylish 7 inch tempered glass touchscreen monitor and external door station with built in electric blue back-lit keypad to enable you to give regular visitor a code to gain access. The kit also contains a interface that simply connects the intercom to your broadband via an ethernet cable. This enables you to receive video calls to your smart phone from visitors at your gate. Using the Controlcam2 app you will be able see and have a 2 way conversation with your visitors, allow them access through your gates by pressing the gate release tab on the app. Then the intercom is triggered it will call the monitor in the house and your smart phone at the same time.  (Mobile Phone Not Included)

Please Note
The system requires a 6 wire connection between the Monitor and door station, and a further 2 wires from the 12 volt power supply to the monitor. there is a relay output on the back of the door station that you will need to connect to you gate automation or electric lock depending on your installation requirements, this will require a further 2 wires.



Download Intercom Manual



Download 6 Wire Wiring Diagram



Download 4 Wire Wiring Diagram
